Products
Click images to enlarge

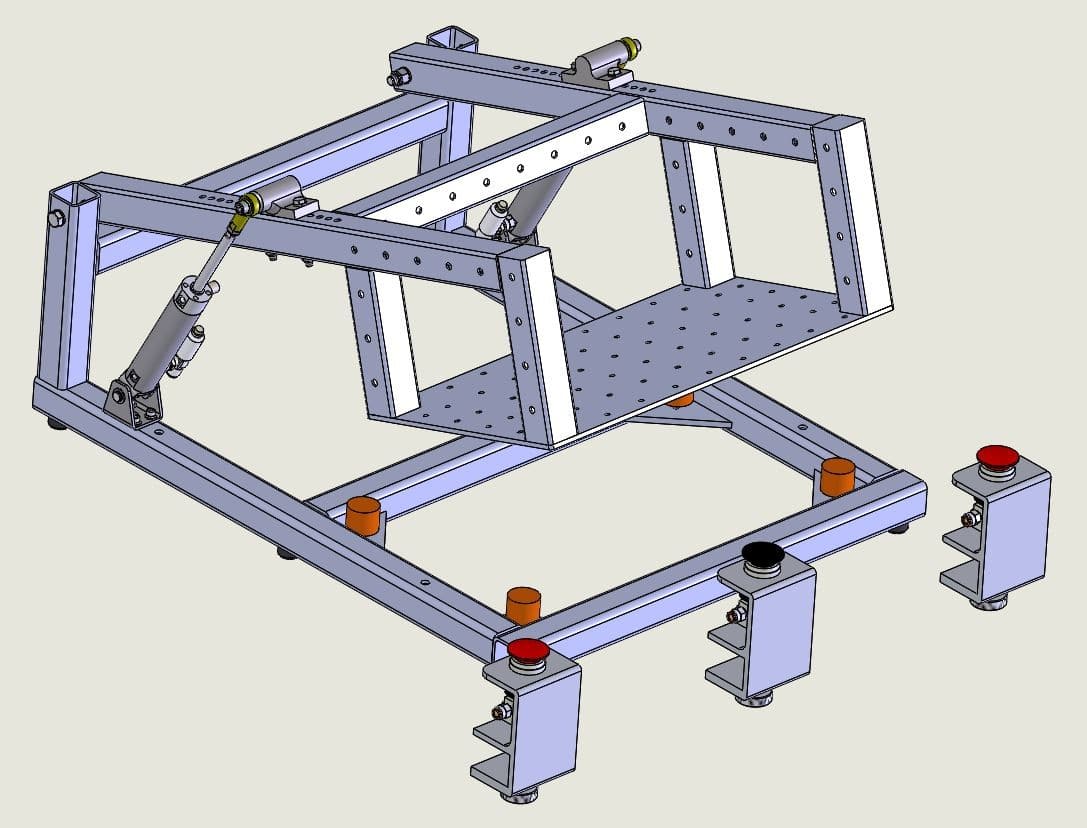

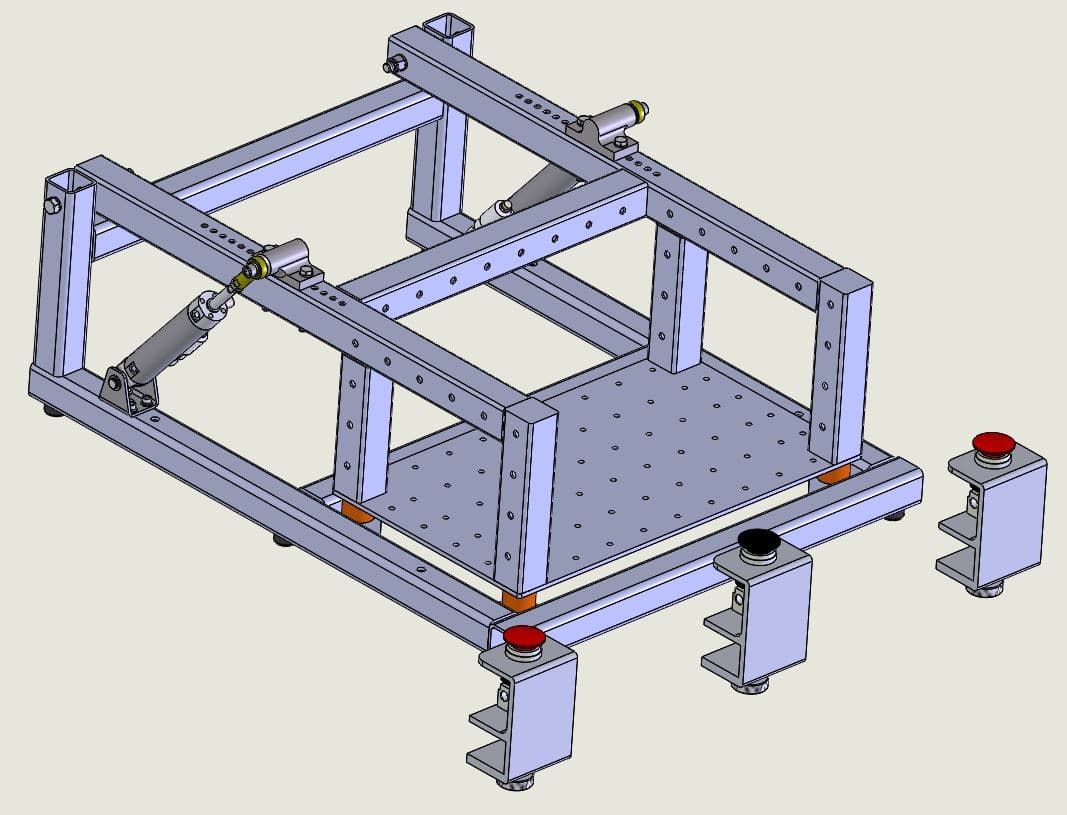

Universal Shock Test Fixture
Features Include:
- Perforated device platform for easy device mounting. (We can design the device nest for you.)
- Accommodates a maximum device footprint size of 14.75 x 10.75.
- Safe pneumatic operation.
- Adjustable drop heights (in inches): 12 max, 10.5, 9, 8, 6.5, 5.25, 4, 2.75, 1.5.
- Changeable bumpers of multiple durometers.
- Welded stainless steel frame.
.JPG "Shock Test Fixture (down)")
.JPG "Shock Test Fixture (up)")
> Click to download 3D Version
Opening 3D files require a SolidWorks eDrawings viewer. If you do not have the viewer, please install it for free at eDrawings Viewer.

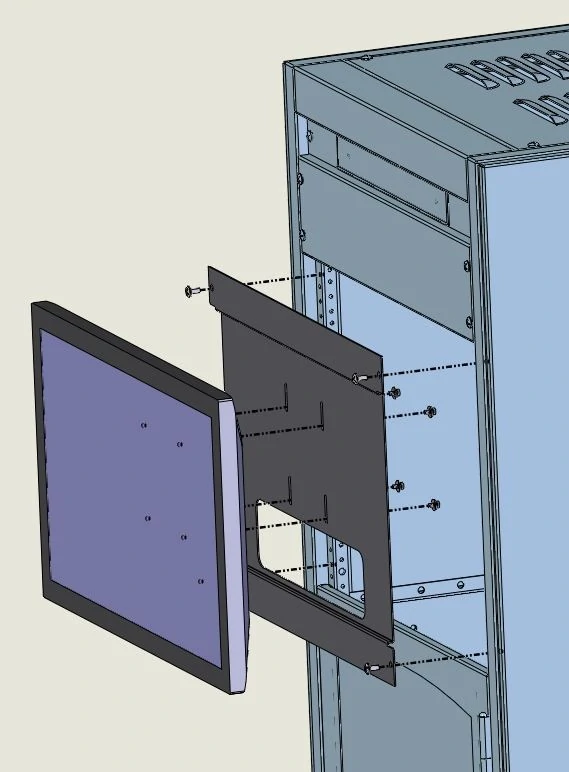

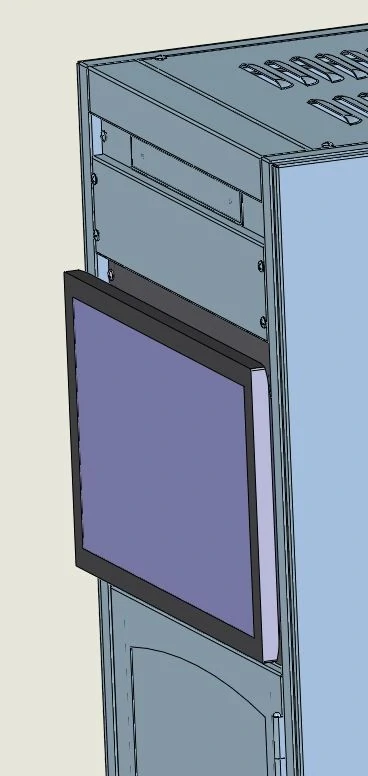

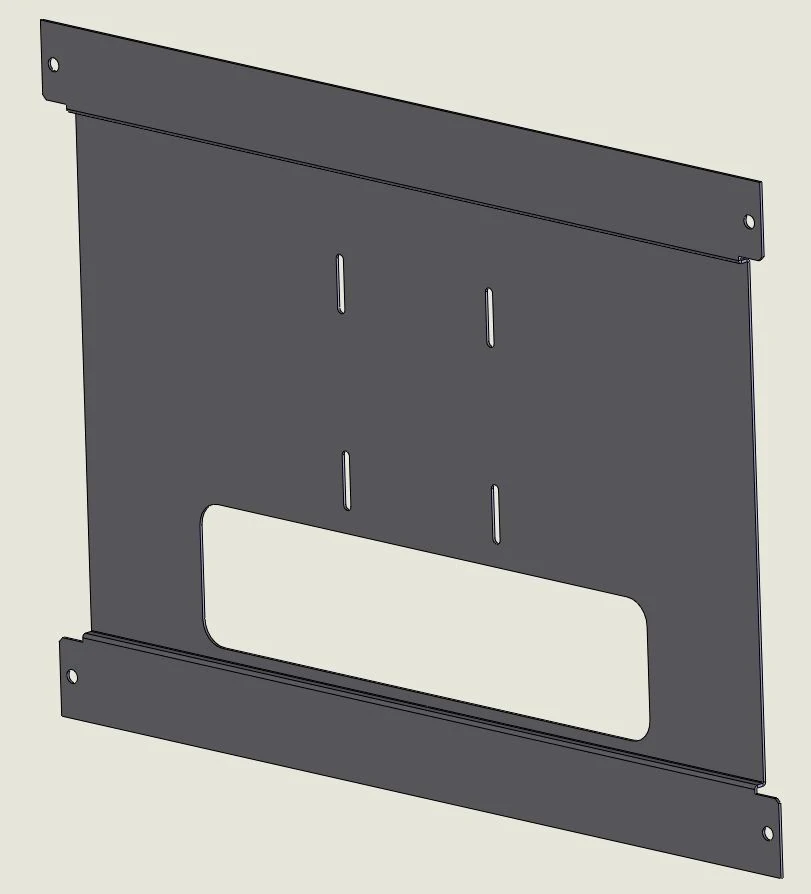

Rack Monitor Bracket
Features Include:
- Accommodates most monitors. Custom design on request.
- EIA compatible for use on 19 & 24 inch rack cabinets.
- Matte black powder coated carbon steel material. Custom finish & color on request.

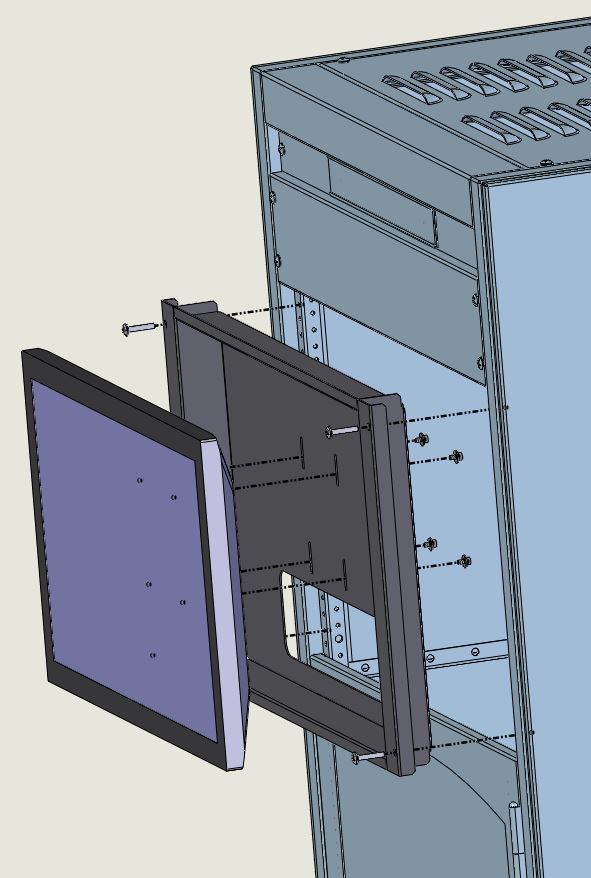

Flush-Mount Rack Monitor Bracket
Features Include:
- Accommodates most monitors. Custom design on request.
- EIA compatible for use on 19 & 24 inch rack cabinets.
- Matte black powder coated carbon steel material. Custom finish & color on request.

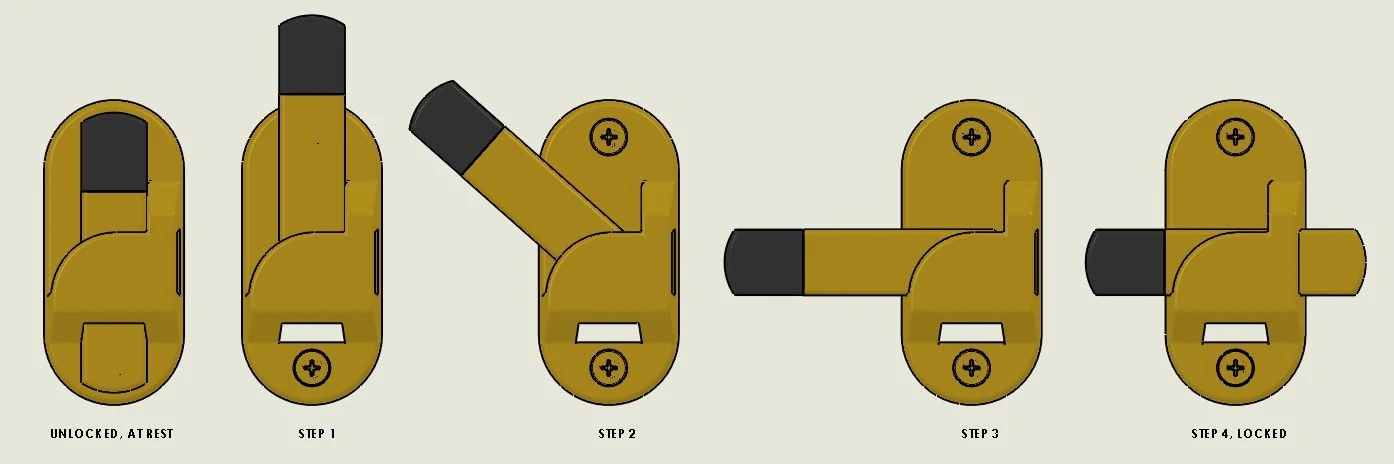

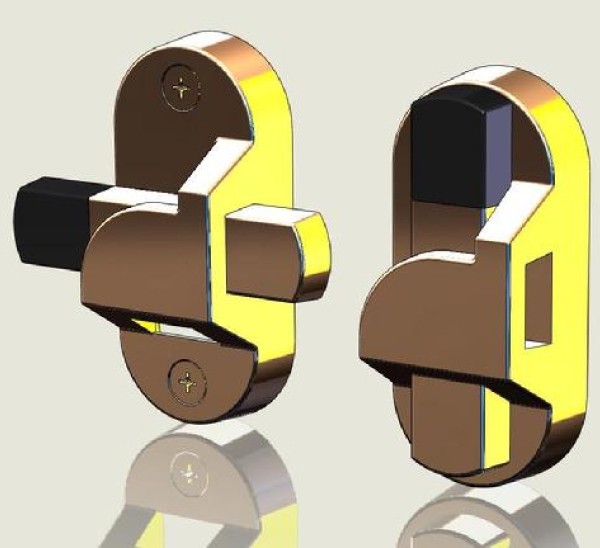

Safety-Peek™ Door Latch
Features Include:
- Simple & efficient two-piece design.
- Easy to operate.
- Allows minimal door opening for safe viewing and passage of documents.
- Ideal for hotels.
- Strong brass plated cast zinc material. Custom finish & color on request.
.jpg "Safety Door Latch")
.JPG "Safety Door Latch (dimensions)")

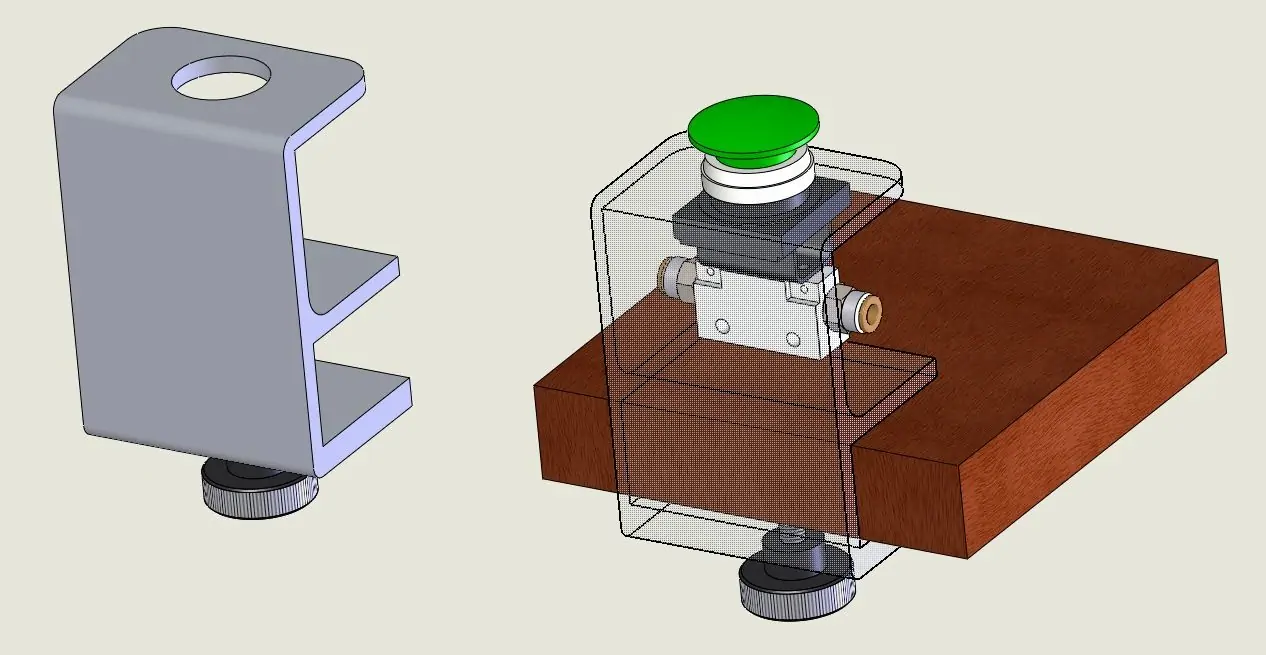

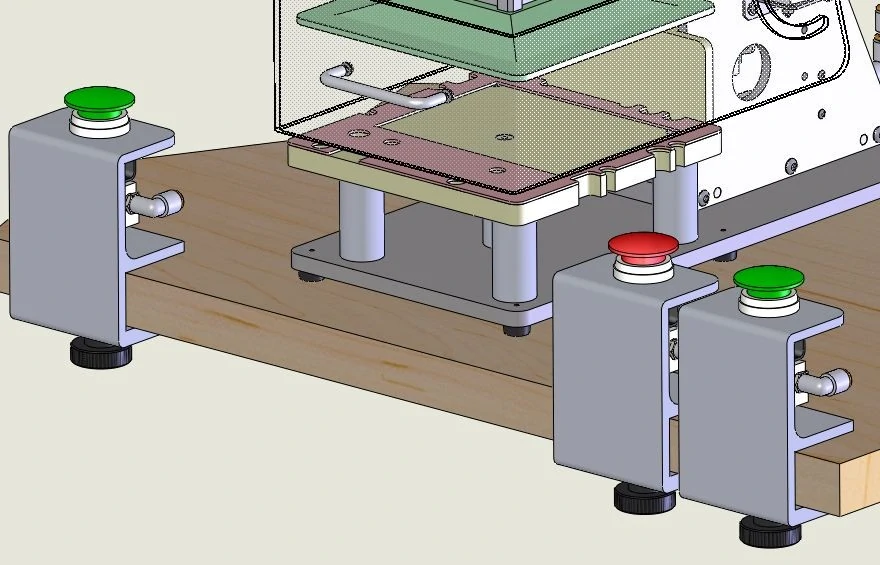

Pneumatic Palm Valve Bench Bracket
Features Include:
- For use in actuating bench-top pneumatic devices.
- Spread apart, multiple use, provides operator safety by keeping hands away from device danger during actuation.
- Simple knob clamping design for bench edge mounting.
- Accommodates up to 1.38 inch thick edge. Custom design on request.
- Clear anodized aluminum material. Custom finish & color on request.

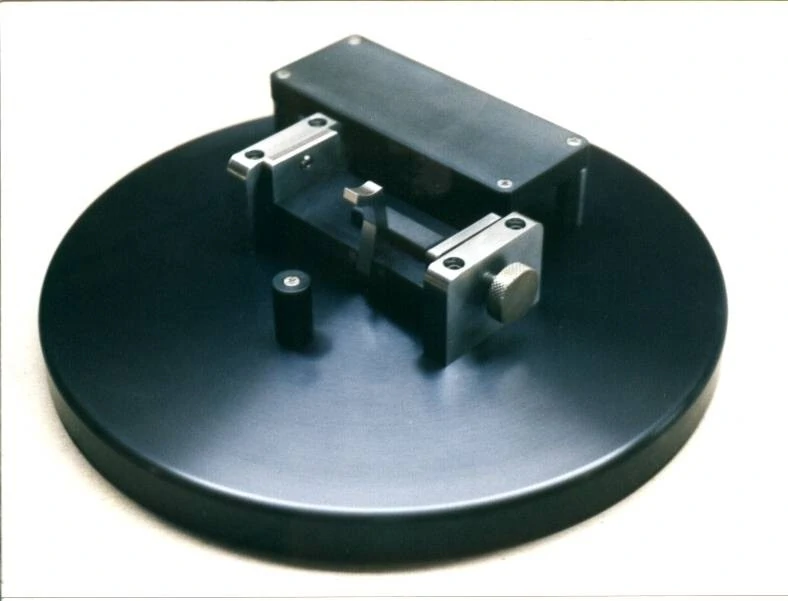

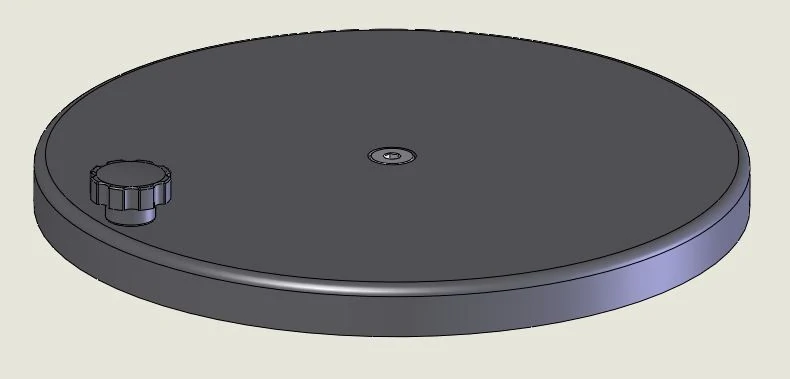

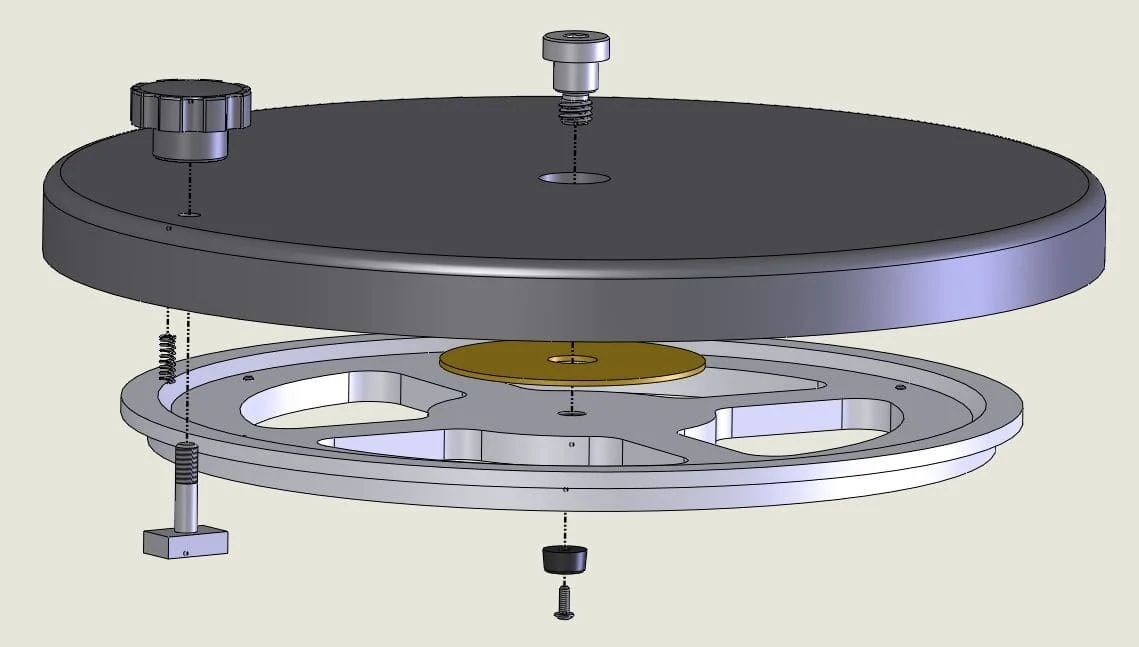

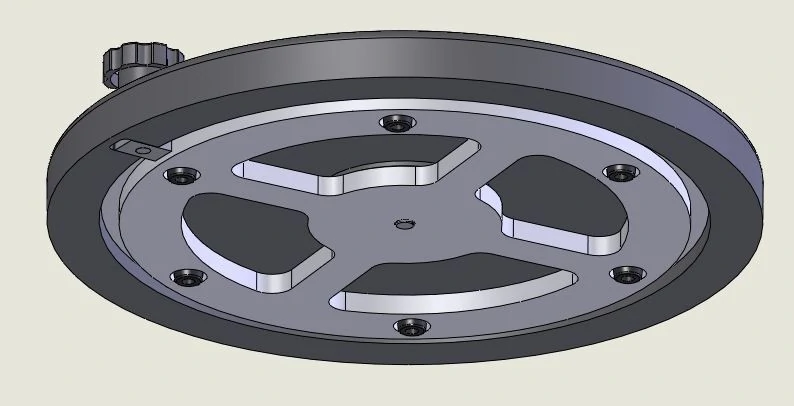

Universal Carousel Assembly Fixture
Features include:
- For use in product assembly requiring efficient, smooth, lockable 360° rotation.
- Adaptable to any assembly need: assembly tooling mounting features, threaded holes, etc. applied to carousel deck on request.
- 12 inch diameter carousel deck.
- Hard coat black anodized aluminum carousel top material. Custom finish & color on request. Passivated stainless steel base material.
- Optional static dissipative foot pads.
